Product No.
8000-1-01358
Model No.
YWF.A4T-500S-5FⅠA06
Material No.
2000403474
Fan type
Axial fan
ErP data
Nominal data
Curves

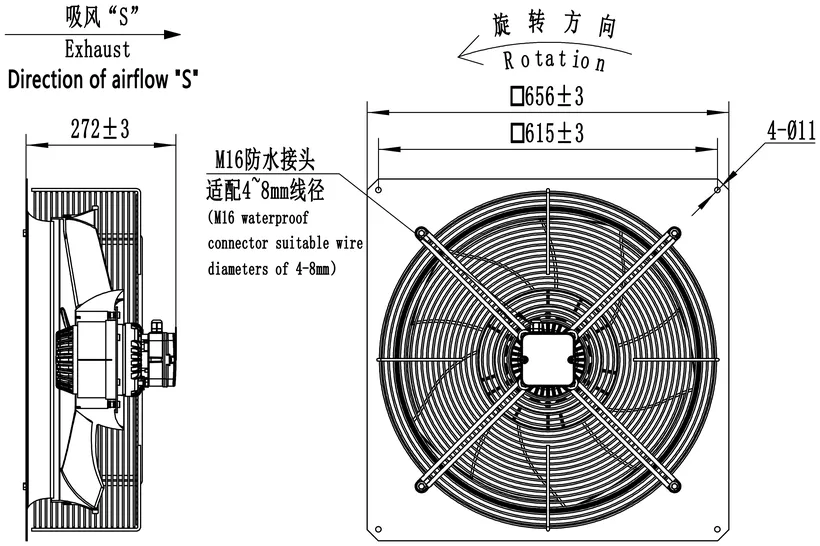

Drawing
| a) Fan type | Axial fan |
| b) Fan efficiency η at BEP | 42.4% |
| b) Fan efficiency η required | 38.4% |
| c) Variable speed drive | no |
| d) Measurement category | A |
| e) Efficiency category | static |
| f) Efficiency grade N at BEP | 54.0 |
| f) Efficiency grade N required | 50 |
| g) Input power Pe at BEP | 0.784 kW |
| g) Volume flow rate qv at BEP | 6532 m³/h |
| g) Pressure difference Δp at BEP | 1396 Pa |
| h) Special characteristics | |
| i) DC voltage lower than 100 V | no |
| j) Significant elements supplied with the fan | ■ impeller ■ electric motor ■ guide grid ■ inlet ring ■ terminal box |
| l) Fan speed rpm at BEP | 158 rpm |
| m) Specific ratio | 1.002 |
| n) Manufacturer's name and address | HANGZHOU DUNLI ELECTRIC APPLIANCES CO., LTD. No.1 Dunli Road, Renhe Street, Yuhang District, Hangzhou, China. |
| o) Model identifier and codes | 2000403474 YWF.A4T-500S-5FⅠA06 |
Basic Parameters
| Voltage Input | Three-phase AC |
| Voltage (V) | 380/400 |
| Power (W) | 600.0 |
| Speed (RPM) | 1420 |
| Diameter Φ (mm) | 559 |
| Frequency(Hz) | 50 |
| Current(A) | 1.4 |
| Capacitor(μF) | / |
| Noise(dB) | 66 |
| Ambient Temperature(℃) | -30/60 |
Product Information
| Blades Material | Plastic |
| Ingress Protection Rating | IP54 |
| Insulation Class | F |
| Store Temperature(℃) | -40~80 |
| Approvals | CCC,CE |
| No | n | Pₑ | I |
| / | rpm | W | A |
| 1 | 1389 | 823.8 | 1.62 |
| 2 | 1390 | 820.7 | 1.62 |
| 3 | 1391 | 815.2 | 1.61 |
| 4 | 1396 | 785.3 | 1.59 |
| 5 | 1398 | 773.0 | 1.58 |
| 6 | 1402 | 756.5 | 1.56 |
| 7 | 1409 | 711.9 | 1.52 |
| 8 | 1417 | 657.4 | 1.47 |
| 9 | 1426 | 603.1 | 1.43 |
