Product No.
8000-1-00982
Model No.
YNF.A6T-910S-4FⅠA05
Material No.
2000403276
Fan type
Axial fan
ErP data
Nominal data
Curves

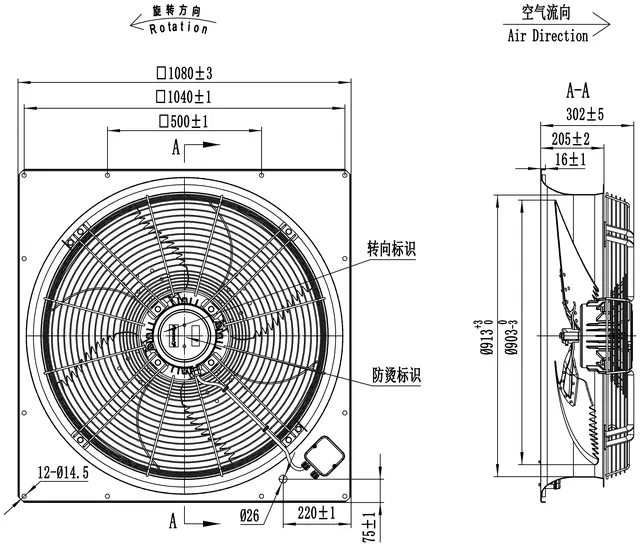

Drawing
| a) Fan type | Axial fan |
| b) Fan efficiency η at BEP | 44.5% |
| b) Fan efficiency η required | 42.5% |
| c) Variable speed drive | no |
| d) Measurement category | A |
| e) Efficiency category | static |
| f) Efficiency grade N at BEP | 52.0 |
| f) Efficiency grade N required | 50 |
| g) Input power Pe at BEP | 1.943 kW |
| g) Volume flow rate qv at BEP | 20620 m³/h |
| g) Pressure difference Δp at BEP | 949 Pa |
| h) Special characteristics | |
| i) DC voltage lower than 100 V | no |
| j) Significant elements supplied with the fan | |
| l) Fan speed rpm at BEP | 142 rpm |
| m) Specific ratio | 1.001 |
| n) Manufacturer's name and address | HANGZHOU DUNLI ELECTRIC APPLIANCES CO., LTD. No.1 Dunli Road, Renhe Street, Yuhang District, Hangzhou, China. |
| o) Model identifier and codes | 2000403276 YNF.A6T-910S-4FⅠA05 |
Basic Parameters
| Voltage Input | Three-phase AC |
| Voltage (V) | 380/400 |
| Power (W) | 2150.0 |
| Speed (RPM) | 940 |
| Diameter Φ (mm) | 903 |
| Frequency(Hz) | 50 |
| Current(A) | 4.5 |
| Capacitor(μF) | / |
| Noise(dB) | 67 |
| Ambient Temperature(℃) | -30/60 |
Product Information
| Blades Material | Aluminum alloy |
| Ingress Protection Rating | IP55 |
| Insulation Class | F |
| Store Temperature(℃) | -40~80 |
| Approvals | CE |
| No | n | Pₑ | I |
| / | rpm | W | A |
| 1 | 943 | 2117.1 | 4.41 |
| 2 | 948 | 2032.5 | 4.29 |
| 3 | 950 | 1933.4 | 4.16 |
| 4 | 954 | 1840.8 | 4.04 |
| 5 | 957 | 1761.0 | 3.95 |
| 6 | 959 | 1667.2 | 3.82 |
| 7 | 964 | 1583.9 | 3.73 |
| 8 | 966 | 1495.7 | 3.64 |
| 9 | 969 | 1415.7 | 3.55 |
| 10 | 971 | 1337.1 | 3.48 |
