Product No.
8000-1-01044
Model No.
YNF.A6T-910S-4FⅠA04
Material No.
2000403350
Fan type
Axial fan
ErP data
Nominal data
Curves

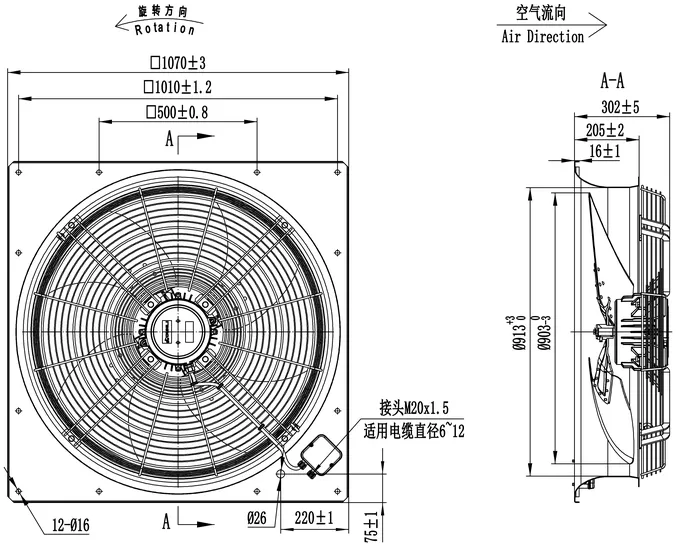

Drawing
| a) Fan type | Axial fan |
| b) Fan efficiency η at BEP | 45.1% |
| b) Fan efficiency η required | 44.8% |
| c) Variable speed drive | no |
| d) Measurement category | A |
| e) Efficiency category | static |
| f) Efficiency grade N at BEP | 50.3 |
| f) Efficiency grade N required | 50 |
| g) Input power Pe at BEP | 3.183 kW |
| g) Volume flow rate qv at BEP | 24952 m³/h |
| g) Pressure difference Δp at BEP | 1165 Pa |
| h) Special characteristics | |
| i) DC voltage lower than 100 V | no |
| j) Significant elements supplied with the fan | |
| l) Fan speed rpm at BEP | 180 rpm |
| m) Specific ratio | 1.002 |
| n) Manufacturer's name and address | HANGZHOU DUNLI ELECTRIC APPLIANCES CO., LTD. No.1 Dunli Road, Renhe Street, Yuhang District, Hangzhou, China. |
| o) Model identifier and codes | 2000403350 YNF.A6T-910S-4FⅠA04 |
Basic Parameters
| Voltage Input | Three-phase AC |
| Voltage (V) | 380/400 |
| Power (W) | 3183.0 |
| Speed (RPM) | 1165 |
| Diameter Φ (mm) | 903 |
| Frequency(Hz) | 60 |
| Current(A) | 5.84 |
| Capacitor(μF) | / |
| Noise(dB) | 74 |
| Ambient Temperature(℃) | -30/60 |
Product Information
| Blades Material | Aluminum alloy |
| Ingress Protection Rating | IP55 |
| Insulation Class | F |
| Store Temperature(℃) | -40~80 |
| Approvals | CE |
| No | n | Pₑ | I |
| / | rpm | W | A |
| 1 | 1165 | 3183.3 | 5.84 |
| 2 | 1168 | 3083.4 | 5.7 |
| 3 | 1168 | 2978.9 | 5.55 |
| 4 | 1169 | 2852.9 | 5.4 |
| 5 | 1171 | 2808.7 | 5.34 |
| 6 | 1172 | 2713.3 | 5.21 |
| 7 | 1174 | 2584.4 | 5.05 |
| 8 | 1176 | 2487.2 | 4.92 |
| 9 | 1178 | 2335.1 | 4.75 |
| 10 | 1178 | 2328.9 | 4.76 |
