Product No.
8000-1-00177
Model No.
YNF.A6T-910S-4FⅠAV0
Material No.
2000402842
Fan type
Axial fan
ErP data
Nominal data
Curves

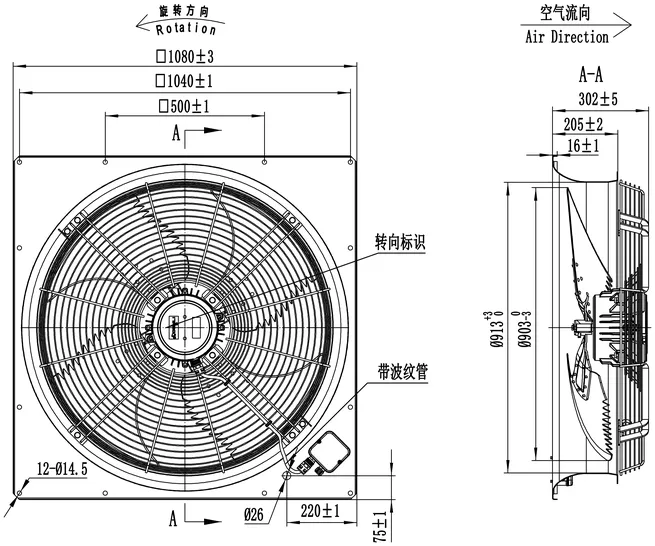

Drawing
| a) Fan type | Axial fan |
| b) Fan efficiency η at BEP | 44.0% |
| b) Fan efficiency η required | 42.8% |
| c) Variable speed drive | no |
| d) Measurement category | A |
| e) Efficiency category | static |
| f) Efficiency grade N at BEP | 51.2 |
| f) Efficiency grade N required | 50 |
| g) Input power Pe at BEP | 2.054 kW |
| g) Volume flow rate qv at BEP | 18613 m³/h |
| g) Pressure difference Δp at BEP | 946 Pa |
| h) Special characteristics | |
| i) DC voltage lower than 100 V | no |
| j) Significant elements supplied with the fan | |
| l) Fan speed rpm at BEP | 164 rpm |
| m) Specific ratio | 1.002 |
| n) Manufacturer's name and address | HANGZHOU DUNLI ELECTRIC APPLIANCES CO., LTD. No.1 Dunli Road, Renhe Street, Yuhang District, Hangzhou, China. |
| o) Model identifier and codes | 2000402842 YNF.A6T-910S-4FⅠAV0 |
Basic Parameters
| Voltage Input | Three-phase AC |
| Voltage (V) | 380/400 |
| Power (W) | 2125.0 |
| Speed (RPM) | 943 |
| Diameter Φ (mm) | 903 |
| Frequency(Hz) | 50 |
| Current(A) | 4.38 |
| Capacitor(μF) | / |
| Noise(dB) | 70 |
| Ambient Temperature(℃) | -30/65 |
Product Information
| Blades Material | Aluminum alloy |
| Ingress Protection Rating | IP55 |
| Insulation Class | F |
| Store Temperature(℃) | -40~80 |
| Approvals | CE |
| No | n | Pₑ | I |
| / | rpm | W | A |
| 1 | 943 | 2125.4 | 4.38 |
| 2 | 947 | 2037.1 | 4.27 |
| 3 | 948 | 1971.6 | 4.18 |
| 4 | 953 | 1847.3 | 4.02 |
| 5 | 956 | 1759.8 | 3.9 |
| 6 | 959 | 1682.4 | 3.8 |
| 7 | 962 | 1592.3 | 3.71 |
| 8 | 965 | 1501.9 | 3.58 |
| 9 | 967 | 1410.0 | 3.49 |
| 10 | 968 | 1333.7 | 3.4 |
